SRK IP CAMERA
SRK-IP-20AR-A6
1/2.9” HD-CMOS CS Lens 8mm (12mm Optional) IR Distance up to 80-100 Mtr. IP 66, Weatherproof outdoor 6-IR Array LED / upto 80-100Mtr. PoE Optional H.264/H.265 Supported
| Image Sensor | 1/2.9” HD-CMOS |
| Lens Mount | CS Lens 8mm (12mm Optional) |
| Minimum Illumintion | 0.5 Lux; 0Lux With IR on |
| P2P | Supported |
| Video Compression | H.265 Video Compression, Support Dual Stream |
| Frame Rate | 2.0 Megapixel @ 25FPS |
| Image Output | Main Stream:1920×1080@1-25fps / Sub Stream: 640×360@1-25fps |
| Shutter Speed | Auto/Manual, 1/3(4) ~ 1/10,000s |
| White Balance | Auto |
| ONVIF | Yes |
| Network Interface | 1RJ45 Ethernet Interface |
| Network Function | Free Client Software |
| IR Distance | 6-IR Array LED / 80-100 Mtr… |
| Working Condition | -10°C to +55°C (32°F–133°F) , 10% – 90%PH |
| Power Supply | 12VDC / 2A |
SRK-IP-20IB18SI
1/2.9” HD-CMOS 3.6mm MP HD Lens IR Distance up to 20-30Mtr. IR OutDoor Camera(Weatherproof) 18SIIR Array LED / up to 20-30Mtr… PoE Supportd H.265 / H.264 Supported
| Image Sensor | 1/2.9” HD-CMOS |
| Lens Mount | 3.6mm Megapixel HD Lens |
| Minimum Illumintion | 0.5 Lux; 0Lux With IR on |
| P2P | Supported |
| Video Compression | H.265 Video Compression, Support Dual Stream |
| Frame Rate | 2.0 Megapixel @ 25FPS |
| Image Output | Main Stream:1920×1080@1-25fps / Sub Stream: 640×360@1-25fps |
| Shutter Speed | Auto/Manual, 1/3(4) ~ 1/10,000s |
| White Balance | Auto |
| ONVIF | Yes |
| Network Interface | 1RJ45 Ethernet Interface |
| Network Function | Free Client Software |
| IR Distance | 6-IR Array LED / 80-100 Mtr… |
| Working Condition | -10°C to +55°C (32°F–133°F) , 10% – 90%PH |
| Power Supply | 12VDC / 2A |
SRK-IP-20IB24SI
1/2.9” HD-CMOS 3.6mm MP HD Lens IR Distance up to 20-30Mtr. IR OutDoor Camera(Weatherproof) 24 SIR Array LED / up to 20-30Mtr… PoE Supportd H.265 / H.264 Supported
| Image Sensor | 1/2.9” HD-CMOS |
| Lens Mount | 3.6mm Megapixel HD Lens |
| Minimum Illumintion | 0.5 Lux; 0Lux With IR on |
| P2P | Supported |
| Video Compression | H.265 Video Compression, Support Dual Stream |
| Frame Rate | 2.0 Megapixel @ 25FPS |
| Image Output | Main Stream:1920×1080@1-25fps / Sub Stream: 640×360@1-25fps |
| Shutter Speed | Auto/Manual, 1/3(4) ~ 1/10,000s |
| White Balance | Auto |
| ONVIF | Yes |
| Network Interface | 1RJ45 Ethernet Interface |
| Network Function | Free Client Software |
| IR Distance | 24SI -IR LED / 30 Mtr… |
| Working Condition | -10°C to +55°C (32°F–133°F) , 10% – 90%PH |
| Power Supply | 12VDC / 2A |
SRK-IP-20IB18SI
1/2.9” HD-CMOS 3.6mm MP HD Lens IR Distance up to 20-30Mtr. IR OutDoor Camera(Weatherproof) 18SIIR Array LED / up to 20-30Mtr… PoE Supportd H.265 / H.264 Supported
| Image Sensor | 1/2.9” HD-CMOS |
| Lens Mount | 3.6mm Megapixel HD Lens |
| Minimum Illumintion | 0.5 Lux; 0Lux With IR on |
| P2P | Supported |
| Video Compression | H.265 Video Compression, Support Dual Stream |
| Frame Rate | 2.0 Megapixel @ 25FPS |
| Image Output | Main Stream:1920×1080@1-25fps / Sub Stream: 640×360@1-25fps |
| Shutter Speed | Auto/Manual, 1/3(4) ~ 1/10,000s |
| White Balance | Auto |
| ONVIF | Yes |
| Network Interface | 1RJ45 Ethernet Interface |
| Network Function | Free Client Software |
| IR Distance | 42 IR LED / 40-50 Mtr… |
| Working Condition | -10°C to +55°C (32°F–133°F) , 10% – 90%PH |
| Power Supply | 12VDC / 2A |
SRK-IP-20IBAR6
1/2.9” HD-CMOS 3.6mm MP HD Lens IR Distance up to 20-30Mtr. IR OutDoor Camera(Weatherproof) 6-IR Array LED / up to 20-30Mtr… PoE Supportd H.265 / H.264 Supported
| Image Sensor | 1/2.9” HD-CMOS |
| Lens Mount | 3.6mm Megapixel HD Lens |
| Minimum Illumintion | 0.5 Lux; 0Lux With IR on |
| P2P | Supported |
| Video Compression | H.265 Video Compression, Support Dual Stream |
| Frame Rate | 2.0 Megapixel @ 25FPS |
| Image Output | Main Stream:1920×1080@1-25fps / Sub Stream: 640×360@1-25fps |
| Shutter Speed | Auto/Manual, 1/3(4) ~ 1/10,000s |
| White Balance | Auto |
| ONVIF | Yes |
| Network Interface | 1RJ45 Ethernet Interface |
| Network Function | Free Client Software |
| IR Distance | 6-IR Array LED / 80-100 Mtr… |
| Working Condition | -10°C to +55°C (32°F–133°F) , 10% – 90%PH |
| Power Supply | 12VDC / 2A |
SRK-IP-20ID-AR6
1/2.9” HD-CMOS 3.6mm MP HD Lens IR Distance up to 20-30 Mtr. IP 66, Indoor 6-IR Array LED / upto 20-30Mtr. PoE Optional H.264/H.265 Supported
| Image Sensor | 1/2.9” HD-CMOS |
| Lens Mount | 3.6mm Megapixel HD Lens |
| Minimum Illumintion | 0.5 Lux; 0Lux With IR on |
| P2P | Supported |
| Video Compression | H.265 Video Compression, Support Dual Stream |
| Frame Rate | 2.0 Megapixel @ 25FPS |
| Image Output | Main Stream:1920×1080@1-25fps / Sub Stream: 640×360@1-25fps |
| Shutter Speed | Auto/Manual, 1/3(4) ~ 1/10,000s |
| White Balance | Auto |
| ONVIF | Yes |
| Network Interface | 1RJ45 Ethernet Interface |
| Network Function | Free Client Software |
| IR Distance | 6-IR Array LED / 80-100 Mtr… |
| Working Condition | -10°C to +55°C (32°F–133°F) , 10% – 90%PH |
| Power Supply | 12VDC / 2A |
SRK-IP-30AR-A6
1/2.9” HD-CMOS CS Lens 8mm (12mm Optional) IR Distance up to 80-100 Mtr. IP 66, Weatherproof outdoor 6-IR Array LED / upto 80-100Mtr. PoE Optional H.264/H.265 Supported
| Image Sensor | 1/2.9” HD-CMOS |
| Lens Mount | CS Lens 8mm (12mm Optional) |
| Minimum Illumintion | 0.5 Lux; 0Lux With IR on |
| P2P | Supported |
| Video Compression | H.265 Video Compression, Support Dual Stream |
| Frame Rate | 3.0 Megapixel @ 25FPS |
| Image Output | Main Stream:2048×1536@1-25fps / Sub Stream: 640×360@1-25fps |
| Shutter Speed | Auto/Manual, 1/3(4) ~ 1/10,000s |
| White Balance | Auto |
| ONVIF | Yes |
| Network Interface | 1RJ45 Ethernet Interface |
| Network Function | Free Client Software |
| IR Distance | 6-IR Array LED / 80-100 Mtr… |
| Working Condition | -10°C to +55°C (32°F–133°F) , 10% – 90%PH |
| Power Supply | 12VDC / 2A |

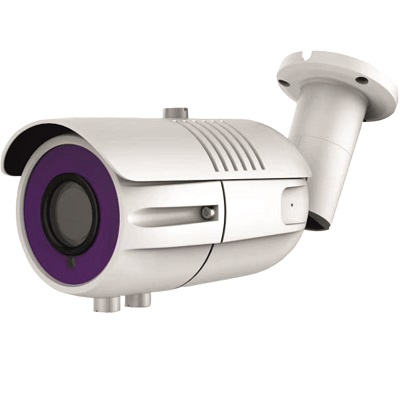

OEM-IP-30IB-42VF
1/2.9” HD-CMOS CS Lens (2.8MM -12.5MM) IR Distance up to 50 Mtr. IP 66, Weatherproof outdoor 42 IR LED / upto 40-50Mtr. PoE Optional H.264/H.265 Supported
| Image Sensor | 1/2.9” HD-CMOS |
| Lens Mount | CS Lens (2.8mm -12mm ) |
| Minimum Illumintion | 0.5 Lux; 0Lux With IR on |
| P2P | Supported |
| Video Compression | H.265 Video Compression, Support Dual Stream |
| Frame Rate | 3.0 Megapixel @ 25FPS |
| Image Output | Main Stream:2048×1536@1-25fps / Sub Stream: 640×360@1-25fps |
| Shutter Speed | Auto/Manual, 1/3(4) ~ 1/10,000s |
| White Balance | Auto |
| ONVIF | Yes |
| Network Interface | 1RJ45 Ethernet Interface |
| Network Function | Free Client Software |
| IR Distance | 42 IR LED / 40-50 Mtr… |
| Working Condition | -10°C to +55°C (32°F–133°F) , 10% – 90%PH |
| Power Supply | 12VDC / 2A |
SRK-IP-30IB18SI
1/2.9” HD-CMOS 3.6mm MP HD Lens IR Distance up to 20-30Mtr. IR OutDoor Camera(Weatherproof) 18SIIR Array LED / up to 20-30Mtr… PoE Supportd H.265 / H.264 Supported
| Image Sensor | 1/2.9” HD-CMOS |
| Lens Mount | 3.6mm Megapixel HD Lens |
| Minimum Illumintion | 0.5 Lux; 0Lux With IR on |
| P2P | Supported |
| Video Compression | H.265 Video Compression, Support Dual Stream |
| Frame Rate | 3.0 Megapixel @ 25FPS |
| Image Output | Main Stream:1920×1080@1-25fps / Sub Stream: 640×360@1-25fps |
| Shutter Speed | Auto/Manual, 1/3(4) ~ 1/10,000s |
| White Balance | Auto |
| ONVIF | Yes |
| Network Interface | 1RJ45 Ethernet Interface |
| Network Function | Free Client Software |
| IR Distance | 18SI -IR LED / 30 Mtr… |
| Working Condition | -10°C to +55°C (32°F–133°F) , 10% – 90%PH |
| Power Supply | 12VDC / 2A |
SRK-IP-30IB24SI
1/2.9” HD-CMOS 3.6mm MP HD Lens IR Distance up to 20-30Mtr. IR OutDoor Camera(Weatherproof) 24SIR LED / up to 20-30Mtr… PoE Supportd H.265 / H.264 Supported
| Image Sensor | 1/2.9” HD-CMOS |
| Lens Mount | 3.6mm Megapixel HD Lens |
| Minimum Illumintion | 0.5 Lux; 0Lux With IR on |
| P2P | Supported |
| Video Compression | H.265 Video Compression, Support Dual Stream |
| Frame Rate | 3.0 Megapixel @ 25FPS |
| Image Output | Main Stream:2048×1536@1-25fps / Sub Stream: 640×360@1-25fps |
| Shutter Speed | Auto/Manual, 1/3(4) ~ 1/10,000s |
| White Balance | Auto |
| ONVIF | Yes |
| Network Interface | 1RJ45 Ethernet Interface |
| Network Function | Free Client Software |
| IR Distance | 24SI -IR LED / 30 Mtr… |
| Working Condition | -10°C to +55°C (32°F–133°F) , 10% – 90%PH |
| Power Supply | 12VDC / 2A |
SRK-IP-30IBAR2-SL
1/2.9” HD-CMOS 3.6mm MP HD Lens Warm Light Distance up to 20Mtr. Warm Light OutDoor Camera(Weatherproof) 2-IR Array LED / up to 15-20Mtr… PoE Supportd H.265 / H.264 Supported
| Image Sensor | 1/2.9” HD-CMOS |
| Lens Mount | 3.6mm Megapixel HD Lens |
| Minimum Illumintion | 0 Lux; 0Lux With on |
| P2P | Supported |
| Video Compression | H.265 Video Compression, Support Dual Stream |
| Frame Rate | 3.0 Megapixel @ 25FPS |
| Image Output | Main Stream:2048×1536@1-25fps / Sub Stream: 640×360@1-25fps |
| Shutter Speed | Auto/Manual, 1/3(4) ~ 1/10,000s |
| White Balance | Auto |
| ONVIF | Yes |
| Network Interface | 1RJ45 Ethernet Interface |
| Network Function | Free Client Software |
| IR Distance | 2-Warm Array LED / 20 Mtr… |
| Working Condition | -10°C to +55°C (32°F–133°F) , 10% – 90%PH |
| Power Supply | 12VDC / 2A |
SRK-IP-30IBAR5-SL
1/2.9” HD-CMOS 3.6mm MP HD Lens Warm Light Distance up to 40Mtr. Color OutDoor Camera(Weatherproof) 5-IR Array LED / up to 40Mtr… PoE Supportd H.265 / H.264 Supported
| Image Sensor | 1/2.9” HD-CMOS |
| Lens Mount | 3.6mm Megapixel HD Lens |
| Minimum Illumintion | 0.5 Lux; 0Lux With IR on |
| P2P | Supported |
| Video Compression | H.265 Video Compression, Support Dual Stream |
| Frame Rate | 3.0 Megapixel @ 25FPS |
| Image Output | Main Stream:2048×1536@1-25fps / Sub Stream: 640×360@1-25fps |
| Shutter Speed | Auto/Manual, 1/3(4) ~ 1/10,000s |
| White Balance | Auto |
| ONVIF | Yes |
| Network Interface | 1RJ45 Ethernet Interface |
| Network Function | Free Client Software |
| IR Distance | 5-IR Array LED / 40 Mtr… |
| Working Condition | -10°C to +55°C (32°F–133°F) , 10% – 90%PH |
| Power Supply | 12VDC / 2A |
SRK-IP-30IBAR6
1/2.9” HD-CMOS 3.6mm MP HD Lens IR Distance up to 20-30Mtr. IR OutDoor Camera(Weatherproof) 6-IR Array LED / up to 20-30Mtr… PoE Supportd H.265 / H.264 Supported
| Image Sensor | 1/2.9” HD-CMOS |
| Lens Mount | 3.6mm Megapixel HD Lens |
| Minimum Illumintion | 0.5 Lux; 0Lux With IR on |
| P2P | Supported |
| Video Compression | H.265 Video Compression, Support Dual Stream |
| Frame Rate | 3.0 Megapixel @ 25FPS |
| Image Output | Main Stream:2048×1536@1-25fps / Sub Stream: 640×360@1-25fps |
| Shutter Speed | Auto/Manual, 1/3(4) ~ 1/10,000s |
| White Balance | Auto |
| ONVIF | Yes |
| Network Interface | 1RJ45 Ethernet Interface |
| Network Function | Free Client Software |
| IR Distance | 6-IR Array LED / 80-100 Mtr… |
| Working Condition | -10°C to +55°C (32°F–133°F) , 10% – 90%PH |
| Power Supply | 12VDC / 2A |
SRK-IP-30ID-AR2-SL
1/3” HD-CMOS 3.6mm MP HD Lens Warm Light Distance up to 15-20Mtr. 3MP Color Dome Camera 2-Warm LED / up to 20-Mtr… PoE Optional H.265+ / H.265/h264 Supported
| Image Sensor | 1/3” HD-CMOS |
| Lens Mount | 3.6mm Megapixel HD Lens |
| Minimum Illumintion | 0Lux; 0Lux With IR on |
| P2P | Supported |
| Video Compression | H.265 Video Compression, Support Dual Stream |
| Frame Rate | 3.0 Megapixel @ 25FPS |
| Image Output | Main Stream:2048×1536@1-25fps / Sub Stream: 640×360@1-25fps |
| Shutter Speed | Auto/Manual, 1/3(4) ~ 1/10,000s |
| White Balance | Auto |
| ONVIF | Yes |
| Network Interface | 1RJ45 Ethernet Interface |
| Network Function | Free Client Software |
| IR Distance | 2-Warm Array LED /15-20 Mtr… |
| Working Condition | -10°C to +55°C (32°F–133°F) , 10% – 90%PH |
| Power Supply | 12VDC / 2A |
SRK-IP-30ID-AR6
1/3” HD-CMOS 3.6mm MP HD Lens IR Distance up to 20-30Mtr. 3MP IR Dome Camera 6-IR Array LED / up to 20-30Mtr… PoE Optional H.265+ / H.265/h264 Supported
| Image Sensor | 1/3” HD-CMOS |
| Lens Mount | 3.6mm Megapixel HD Lens |
| Minimum Illumintion | 0.5 Lux; 0Lux With IR on |
| P2P | Supported |
| Video Compression | H.265 Video Compression, Support Dual Stream |
| Frame Rate | 3.0 Megapixel @ 25FPS |
| Image Output | Main Stream:2048×1536@1-25fps / Sub Stream: 640×360@1-25fps |
| Shutter Speed | Auto/Manual, 1/3(4) ~ 1/10,000s |
| White Balance | Auto |
| ONVIF | Yes |
| Network Interface | 1RJ45 Ethernet Interface |
| Network Function | Free Client Software |
| IR Distance | 6-IR Array LED/18SI / 30 Mtr… |
| Working Condition | -10°C to +55°C (32°F–133°F) , 10% – 90%PH |
| Power Supply | 12VDC / 2A |

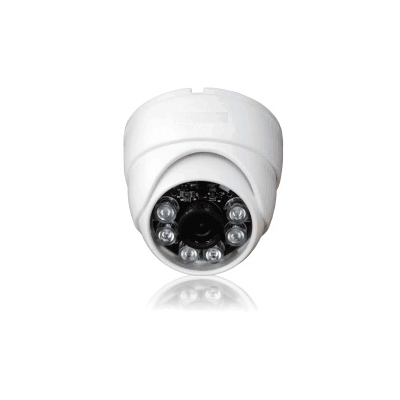

SRK-IP-30ID-AR6
1/3” HD-CMOS 3.6mm MP HD Lens IR Distance up to 20-30Mtr. 3MP IR Dome Camera 6-IR Array LED / up to 20-30Mtr… PoE Optional H.265+ / H.265/h264 Supported
| Image Sensor | 1/3” HD-CMOS |
| Lens Mount | 3.6mm Megapixel HD Lens |
| Minimum Illumintion | 0.5 Lux; 0Lux With IR on |
| P2P | Supported |
| Video Compression | H.265 Video Compression, Support Dual Stream |
| Frame Rate | 3.0 Megapixel @ 25FPS |
| Image Output | Main Stream:2048×1536@1-25fps / Sub Stream: 640×360@1-25fps |
| Shutter Speed | Auto/Manual, 1/3(4) ~ 1/10,000s |
| White Balance | Auto |
| ONVIF | Yes |
| Network Interface | 1RJ45 Ethernet Interface |
| Network Function | Free Client Software |
| IR Distance | 6-IR Array LED / 80-100 Mtr… |
| Working Condition | -10°C to +55°C (32°F–133°F) , 10% – 90%PH |
| Power Supply | 12VDC / 2A |
HD DVR
> SRK HD DVR
> 4CH DVR
> 8CH DVR
> 16CH DVR
> 32CH DVR
HD NVR
> SRK HD NVR
> 8CH NVR
> 16CH NVR
> 32CH NVR
> 64CH NVR
IP CAMERA
> SRK IP CAMERA
> IP 2.0MP
> IP 3.0MP
> IP 4.0MP
> IP 5.0MP
AHD CAMERA
> SRK AHD CAMERA
> AHD 2.0MP
> AHD 2.4MP
> AHD 4.0MP
> AHD 5.0MP
